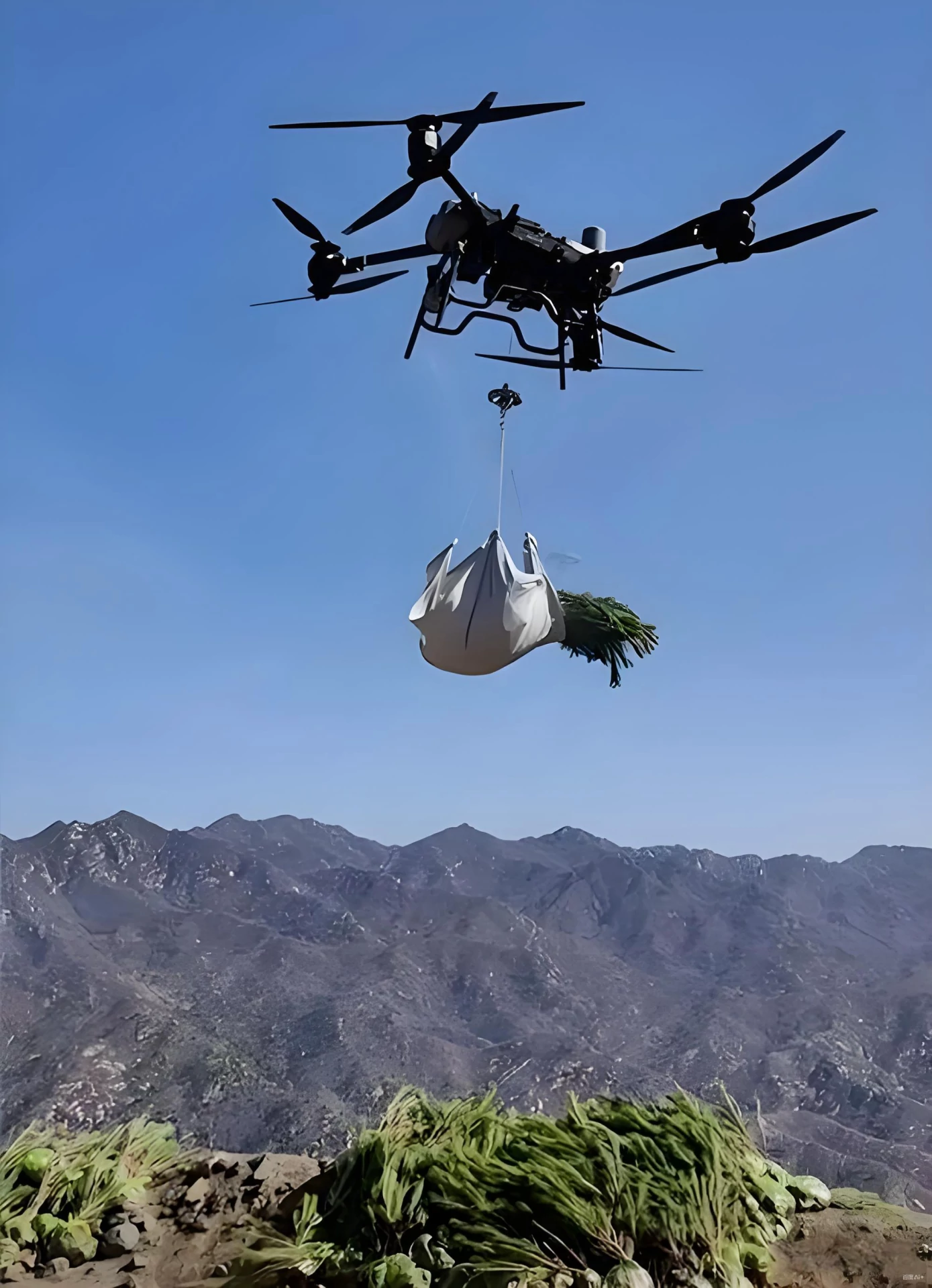

Delivery UAV
VANTA BOTICS delivery-class UAVs are built for 100–300 kg heavy-lift transport, combining redundant power systems, industrial-grade flight control and long-range endurance. Designed for remote or hazardous delivery routes—mountain clinics, mining sites, offshore platforms, disaster zones and isolated communities—these UAVs provide meter-level placement through modular cargo bays, high-capacity winches and automated release systems.
By bypassing damaged roads, difficult terrain and areas unsafe for manned aircraft, our platforms support critical missions such as emergency resupply, industrial maintenance deliveries, offshore logistics and rapid humanitarian response. With configurable range profiles, high-altitude capability and integrated mission-specific payloads, each system aligns with real-world operational demands.
For enterprise and government programs, VANTA BOTICS offers custom airframe engineering, OEM private-label production, fleet configuration and high-volume manufacturing support, ensuring every delivery UAV matches defined mission, compliance and scaling requirements.
Heavy-Lift Delivery Platforms
VANTA BOTICS provides three mission-class heavy-lift delivery UAV platforms—150 kg, 200 kg, and 300 kg payload classes—engineered for long-range transport, high-altitude operation and precise cargo placement. Each system features a reinforced airframe, redundant propulsion architecture and modular cargo interfaces, enabling reliable deployment across emergency logistics, industrial supply, offshore transport and remote-area delivery missions.
150 kg Heavy-Lift Delivery UAV | ||
| Category | Metric | Imperial |
| Payload Capacity | 150 kg | 330 lb |
| Wheelbase | 2600 mm | 102.4 in |
| Dimensions (Deployed, w/o Propellers) | 2800 × 2800 × 1100 mm | 110.2 × 110.2 × 43.3 in |
| Dimensions (Folded) | 1000 × 1000 × 1100 mm | 39.4 × 39.4 × 43.3 in |
| Empty Weight | 66 kg | 145.5 lb |
| Flight Radius | 10 km | 6.2 mi |
| Endurance | 50 min | — |
| Max Flight Altitude | ≥ 2000 m | ≥ 6560 ft |
| Takeoff Altitude | ≥ 6000 m | ≥ 19,685 ft |
| Operating Temperature | −40°C to 90°C | −40°F to 194°F |
| Flight Modes | Manual / Automatic | Manual / Automatic |
| Payload Mounting | Auto-lock quick-mount | Auto-lock quick-mount |
| Mounting Points | 4-point layout | 4-point layout |
| Release Method | Auto ground-contact release | Auto ground-contact release |
| Navigation System | GPS/GLONASS or BDS/GLONASS | GPS/GLONASS or BDS/GLONASS |
| Hover Precision (Vertical) | ±0.5 m | ±1.6 ft |
| Hover Precision (Horizontal) | ±0.5 m | ±1.6 ft |
| Airframe Material | Carbon-fiber composite | Carbon-fiber composite |
200 kg Heavy-Lift Delivery UAV | ||
| Category | Metric | Imperial |
| Payload Capacity | 200 kg | 440 lb |
| Wheelbase | 4500 mm | 177.2 in |
| Dimensions (Deployed, w/o Propellers) | 4200 × 4200 × 1200 mm | 165.4 × 165.4 × 47.2 in |
| Dimensions (Folded) | 2100 × 2100 × 1000 mm | 82.7 × 82.7 × 39.4 in |
| Empty Weight | 139 kg | 306.4 lb |
| Flight Radius | 10 km | 6.2 mi |
| Endurance | 40 min | — |
| Max Flight Altitude | ≥ 2000 m | ≥ 6560 ft |
| Takeoff Altitude | ≥ 5000 m | ≥ 16,404 ft |
| Operating Temperature | −40°C to 85°C | −40°F to 185°F |
| Flight Modes | Manual / Automatic | Manual / Automatic |
| Payload Mounting | Auto-lock quick-mount | Auto-lock quick-mount |
| Mounting Points | 4-point layout (center-balanced) | 4-point layout (center-balanced) |
| Release Method | Auto ground-contact release | Auto ground-contact release |
| Navigation System | GPS/GLONASS or BDS/GLONASS (triple-redundant GNSS) | GPS/GLONASS or BDS/GLONASS |
| Hover Precision (Vertical) | ±0.5 m | ±1.6 ft |
| Hover Precision (Horizontal) | ±0.5 m | ±1.6 ft |
| Airframe Material | Carbon-fiber composite | Carbon-fiber composite |
300 kg Heavy-Lift Delivery UAV | ||
| Category | Metric | Imperial |
| Payload Capacity | 300 kg | 661 lb |
| Wheelbase | 4600 mm | 181.1 in |
| Dimensions (Deployed, w/o Propellers) | 4300 × 4300 × 1200 mm | 169.3 × 169.3 × 47.2 in |
| Dimensions (Folded) | 2100 × 2100 × 1000 mm | 82.7 × 82.7 × 39.4 in |
| Empty Weight | 140 kg | 308.6 lb |
| Flight Radius | 10 km | 6.2 mi |
| Endurance | 40 min | — |
| Max Flight Altitude | ≥ 2000 m | ≥ 6560 ft |
| Takeoff Altitude | ≥ 5000 m | ≥ 16,404 ft |
| Operating Temperature | −40°C to 85°C | −40°F to 185°F |
| Flight Modes | Manual / Automatic | Manual / Automatic |
| Payload Mounting | Auto-lock quick-mount | Auto-lock quick-mount |
| Mounting Points | 4-point layout (center-balanced) | 4-point layout (center-balanced) |
| Release Method | Auto ground-contact release | Auto ground-contact release |
| Navigation System | GPS/GLONASS or BDS/GLONASS (triple-redundant GNSS) | GPS/GLONASS or BDS/GLONASS |
| Hover Precision (Vertical) | ±0.5 m | ±1.6 ft |
| Hover Precision (Horizontal) | ±0.5 m | ±1.6 ft |
| Airframe Material | Carbon-fiber composite | Carbon-fiber composite |
01
Payloads
Handles 100–300 kg payloads for critical transport missions.
02
Delivery
Automated release ensures accurate, damage-free cargo placement.
03
Customization
Custom airframes, modules and OEM builds for large-scale programs.
Modular Delivery Platforms
Gas-powered and electric Delivery UAV platforms engineered for heavy-lift logistics, long-range missions, and mission-specific customization. All platforms support interchangeable payload modules for precise, safe and efficient cargo delivery.
Electric Power
High-efficiency airframes for rapid deployment, low maintenance, and stable heavy-lift performance. Ideal for structured logistics, industrial sites and short-to-mid-range missions requiring clean, quiet operation.
Model: VB65D
Wheelbase: 1200 mm / 47.2 in
Expanded Dimensions: 1060 × 1240 × 530 mm (41.7 × 48.8 × 20.9 in)
Folded Dimensions: 670 × 530 × 530 mm (26.4 × 20.9 × 20.9 in)
Unloaded Weight: 5.5 kg / 12.1 lb
Maximum Payload: 5 kg / 11.0 lb
Endurance (No Payload): ≥ 70 minutes
Wind Resistance: Level 8
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 62.3 V
Battery Capacity: 22,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB410D
Wheelbase: 1400 mm / 55.1 in
Expanded Dimensions: 1000 × 1000 × 600 mm (39.4 × 39.4 × 23.6 in)
Folded Dimensions: 620 × 620 × 600 mm (24.4 × 24.4 × 23.6 in)
Unloaded Weight: 11.85 kg / 26.1 lb
Maximum Payload: 10 kg / 22.0 lb
Endurance (No Payload): ≥ 65 minutes
Wind Resistance: Level 8
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 62.3 V
Battery Capacity: 22,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB620D
Wheelbase: 1680 mm / 66.1 in
Expanded Dimensions: 1500 × 1780 × 680 mm (59.1 × 70.1 × 26.8 in)
Folded Dimensions: 890 × 920 × 680 mm (35.0 × 36.2 × 26.8 in)
Unloaded Weight: 15.2 kg / 33.5 lb
Maximum Payload: 20 kg / 44.1 lb
Endurance (No Payload): ≥ 60 minutes
Wind Resistance: Level 9
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 52 V
Battery Capacity: 62,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB630D
Wheelbase: 1980 mm / 78.0 in
Expanded Dimensions: 1780 × 2080 × 730 mm (70.1 × 81.9 × 28.7 in)
Folded Dimensions: 890 × 920 × 730 mm (35.0 × 36.2 × 28.7 in)
Unloaded Weight: 17.8 kg / 39.2 lb
Maximum Payload: 30 kg / 66.1 lb
Endurance (No Payload): ≥ 80 minutes
Wind Resistance: Level 9
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 62.3 V
Battery Capacity: 62,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB430DS
Wheelbase: 1720 mm / 67.7 in
Expanded Dimensions: 1260 × 1200 × 750 mm (49.6 × 47.2 × 29.5 in)
Folded Dimensions: 520 × 480 × 750 mm (20.5 × 18.9 × 29.5 in)
Unloaded Weight: 17.5 kg / 38.6 lb
Maximum Payload: 30 kg / 66.1 lb
Endurance (No Payload): ≥ 110 minutes
Wind Resistance: Level 9
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 80,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB650D
Wheelbase: 2720 mm / 107.1 in
Expanded Dimensions: 2750 × 2400 × 840 mm (108.3 × 94.5 × 33.1 in)
Folded Dimensions: 1000 × 900 × 840 mm (39.4 × 35.4 × 33.1 in)
Unloaded Weight: 31.6 kg / 69.7 lb
Maximum Payload: 60 kg / 132.3 lb
Endurance (No Payload): ≥ 100 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 62.3 V
Battery Capacity: 160,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB450DS
Wheelbase: 1900 mm / 74.8 in
Expanded Dimensions: 2000 × 2000 × 840 mm (78.7 × 78.7 × 33.1 in)
Folded Dimensions: 950 × 950 × 840 mm (37.4 × 37.4 × 33.1 in)
Unloaded Weight: 25.2 kg / 55.6 lb
Maximum Payload: 60 kg / 132.3 lb
Endurance (No Payload): ≥ 110 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 72,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB480DS
Wheelbase: 2500 mm / 98.4 in
Expanded Dimensions: 2100 × 2100 × 1000 mm (82.7 × 82.7 × 39.4 in)
Folded Dimensions: 930 × 930 × 1000 mm (36.6 × 36.6 × 39.4 in)
Unloaded Weight: 33.9 kg / 74.7 lb
Maximum Payload: 80 kg / 176.4 lb
Endurance (No Payload): ≥ 110 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 72,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VB4150DS
Wheelbase: 2500 mm / 98.4 in
Expanded Dimensions: 2100 × 2100 × 1100 mm (82.7 × 82.7 × 43.3 in)
Folded Dimensions: 930 × 930 × 1100 mm (36.6 × 36.6 × 43.3 in)
Unloaded Weight: 57 kg / 125.7 lb
Maximum Payload: 150 kg / 330.7 lb
Endurance (No Payload): ≥ 120 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 92,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VBF450D
Wheelbase: 1650 mm / 65.0 in
Expanded Dimensions: 1200 × 1200 × 730 mm (47.2 × 47.2 × 28.7 in)
Folded Dimensions: N/A (not provided)
Unloaded Weight: 23.2 kg / 51.1 lb
Maximum Payload: 50 kg / 110.2 lb
Endurance (No Payload): ≥ 70 minutes
Wind Resistance: Level 9
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 62.3 V
Battery Capacity: 80,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VBF6100D
Wheelbase: 2400 mm / 94.5 in
Expanded Dimensions: 2600 × 2600 × 840 mm (102.4 × 102.4 × 33.1 in)
Folded Dimensions: 1100 × 980 × 840 mm (43.3 × 38.6 × 33.1 in)
Unloaded Weight: 48 kg / 105.8 lb
Maximum Payload: 100 kg / 220.5 lb
Endurance (No Payload): ≥ 90 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 144,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Model: VBF6100DS
Wheelbase: 3500 mm / 137.8 in
Expanded Dimensions: 3200 × 2600 × 1100 mm (126.0 × 102.4 × 43.3 in)
Folded Dimensions: 1350 × 1150 × 1100 mm (53.1 × 45.3 × 43.3 in)
Unloaded Weight: 56 kg / 123.5 lb
Maximum Payload: 100 kg / 220.5 lb
Endurance (No Payload): ≥ 100 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Operating Voltage: 78.3 V
Battery Capacity: 144,000 mAh
Service Ceiling: ≥ 5000 m / ≥ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Gasoline Power
Long-endurance, high-output engines built for demanding terrain, remote regions and extended flight time. Suitable for 24/7 logistics, high-altitude work and large-payload missions up to 300 kg.
Model: VB410DH
Wheelbase: 1250 mm / 49.2 in
Expanded Dimensions: 1100 × 950 × 480 mm (43.3 × 37.4 × 18.9 in)
Folded Dimensions: 550 × 430 × 480 mm (21.7 × 16.9 × 18.9 in)
Unloaded Weight: 17.5 kg / 38.6 lb
Maximum Payload: 10 kg / 22.0 lb
Endurance (No Payload): ≥ 240 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Engine Power: 5000 W
Service Altitude: ≤ 5000 m / ≤ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Fuel Type: 92# gasoline + 2T oil mix
Model: VB630DH
Wheelbase: 1980 mm / 78.0 in
Expanded Dimensions: 2080 × 2080 × 730 mm (81.9 × 81.9 × 28.7 in)
Folded Dimensions: 890 × 920 × 730 mm (35.0 × 36.2 × 28.7 in)
Unloaded Weight: 31.2 kg / 68.8 lb
Maximum Payload: 30 kg / 66.1 lb
Endurance (No Payload): ≥ 260 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Engine Power: 7000 W
Service Altitude: ≤ 5000 m / ≤ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Fuel Type: 92# gasoline + 2T oil mix
Model: VB650DH
Wheelbase: 2550 mm / 100.4 in
Expanded Dimensions: 2650 × 2350 × 920 mm (104.3 × 92.5 × 36.2 in)
Folded Dimensions: 1200 × 1000 × 920 mm (47.2 × 39.4 × 36.2 in)
Unloaded Weight: 46.9 kg / 103.4 lb
Maximum Payload: 50 kg / 110.2 lb
Endurance (No Payload): ≥ 300 minutes
Wind Resistance: Level 10
Ingress Protection: IP56
Cruise Speed: 0–20 m/s (0–44.7 mph)
Engine Power: 15 kW
Service Altitude: ≤ 5000 m / ≤ 16,404 ft
Operating Temperature: -45°C to +70°C (-49°F to +158°F)
Fuel Type: 92# gasoline + 2T oil mix
Payload Modules
Interchangeable cargo bays, winches, release systems and specialized mission tools support precise delivery, automated drop, rescue supply, and remote-area logistics across diverse operational profiles.
Mission-specific payload mounts designed for fast swapping and stable heavy-load operations.
Modular aerial dispenser carrying 6–16 fire-suppression canisters, adaptable to different UAV payload classes.
Directional launcher designed to deploy 1–10 fire-suppression canisters with controlled aerial delivery.
Vertical-release unit for VTOL platforms supporting 2–10 fire-suppression canisters.
Configurable 3–20 round unit for deploying certified non-lethal public-safety agents and signaling devices.
High-capacity module holding up to 2,000 A4 leaflets with adjustable three-speed control for precise single-sheet release.
Air-to-ground communication with 1,000 m effective range, featuring onboard audio storage for looped message playback.
Effective capture range over 10 m, designed to secure targets up to 2 m³ for safe airborne interception operations.
200W Aerial Searchlight provides 90° tilt, 360° yaw, 50 m effective height, and 10 m² coverage with adjustable brightness and strobe modes.
Automatic Drop-Release System uses a tethered link for safe cargo descent, unlocking automatically once the load reaches the ground to protect payload integrity.
Heavy-Duty Electronic Release System supports up to 120 kg payloads with manual ground-station control or automatic release at predefined locations.
Smart Aerial Winch System provides controlled, low-speed descent to prevent impact damage and ensure safe, stable cargo delivery.
Anti-Jamming RTK Positioning Module delivers directional interference resistance and centimeter-level accuracy for high-precision UAV navigation.
50km Digital Link Flight Controller provides adaptive anti-interference tuning for long-range operation, with optional 5G upgrade for unlimited-distance connectivity.
Aerial Fire Hose Spray Module connects directly to fire engines or hydrants, supporting 50–150 m operating height for targeted aerial suppression.
Airburst Fire Suppression Dispenser uses real-time altitude scanning to trigger controlled airburst release, creating an aerial barrier layer that boosts suppression efficiency. Supports 5–50 L dry-chemical or water-based agents.
Dry Chemical Ball Dispenser supports single or full-batch release, standard with 6 fire-extinguishing balls and customizable up to 20 units for varied mission needs.
Dry Chemical Tank Spray Module offers 10–30 L capacity with dry chemical or FM-200 agents, delivering >10 m spray distance and ≥10 m² effective suppression coverage.
Aerial Supply Cargo Box features a 30 L side-access press-open door for loading and a dual-door bottom release for remote payload drop, with larger-capacity options available.
Aerial Robotic Gripper offers a 5–15 cm adjustable grasp range for remote handling of hazardous materials, using first-person view control to ensure precise and safe retrieval.
Aerial Ignition System uses a 2 m ignition wand with >5 m flame reach for controlled burn operations, featuring remote one-touch activation and a 5 L fuel reservoir for certified ignition agents such as alcohol-based fuels.
60× EO/IR Gimbal Camera provides ultra-HD tri-axis stabilization with crosshair targeting, one-touch downward view, auto-center return, and aircraft-heading follow modes.
60× Dual-Spectrum AI Gimbal delivers tri-axis stabilization with IR night vision, auto-detect, auto-track, target lock, one-touch downward view, auto-center return, and heading-follow modes.
60× Triple-Spectrum Thermal Gimbal provides thermal temp-measurement, coordinate ranging, AI detect/lock/track, and tri-axis stabilization with one-touch downview and auto-center.
Dual-Spectrum Thermal Gimbal offers tri-axis stabilization with thermal/EO imaging, crosshair view, one-touch downview, and auto-center return.
Full-Band UAV Detector provides 1,000 m detection range with automated monitoring and real-time alerting.
500 kg Electric Winch delivers 380 kg vertical pull for heavy-duty aerial lifting operations.
Applications
Heavy-lift delivery UAVs provide a reliable, safe and cost-efficient alternative to ground fleets, manned helicopters and high-risk transport routes. With 100–300 kg payload capacity, long-range endurance and automated release systems, VANTA BOTICS platforms support logistics operations where traditional transportation is delayed, restricted or unsafe.
In disaster-affected regions—collapsed roads, flood isolation, wildfire perimeters or unstable terrain—UAVs can deliver medical kits, rescue tools and emergency supplies directly to responders or victims. Automated ground-contact release ensures precise placement without requiring personnel to enter hazardous zones, maintaining mission continuity while reducing exposure risk.
Industrial and mining operations depend on timely access to heavy parts, repair tools and specialty materials. Our heavy-lift UAVs bypass difficult terrain, restricted access routes and weather-related delays to maintain uptime. By replacing slow ground transport and minimizing manual handling in dangerous areas, operations can continue without interruption.
Offshore platforms and maritime stations face high logistics costs and narrow deployment windows. Delivery-class UAVs support rapid transport of replacement components, emergency gear and consumables without relying on vessel transfers or manned aircraft. Stable long-range performance provides consistent supply capability even under challenging sea conditions.
Remote communities and isolated research bases often rely on infrequent or weather-dependent supply lines. Our UAV systems enable scheduled or on-demand resupply of medicine, food, documents and technical materials, reducing reliance on ground routes and shortening delivery cycles. Long-endurance gas platforms and high-capacity electric models ensure availability across differing mission profiles.
For hazardous-material areas—chemical leak zones, high-temperature environments, landslide-affected regions or structurally compromised sites—the UAV platforms support safe transport of tools, detectors, and mitigation equipment. High-precision flight control and center-balanced payload points allow accurate placement without sending personnel into unsafe environments.
Across all application scenarios, VANTA BOTICS delivery UAVs provide consistent lift capability, predictable operational performance and enterprise-grade customization, enabling agencies and industrial operators to build scalable, high-reliability logistics programs around heavy-lift unmanned systems.
Eric Zhang
Over 15 years of fire-technology experience with UAV deployment support for 120+ departments and involvement in 200+ suppression, reconnaissance, and rescue projects across wildland, WUI, and high-rise operations.
Submit your operational requirements, and our engineering team will recommend the right platforms, suppression modules, and deployment strategy for your department.
